Wholesale china manufacture cemented lens achromatic bk9 glass optical lens

Wholesale china manufacture cemented lens achromatic bk9 glass optical lens
Wholesale china manufacture cemented lens achromatic bk9 glass optical lens Wholesale china manufacture cemented lens achromatic bk9 glass optical lens Wholesale china manufacture cemented lens achromatic bk9 glass optical lens Wholesale china manufacture cemented lens achromatic bk9 glass optical lens Wholesale china manufacture cemented lens achromatic bk9 glass optical lens Wholesale china manufacture cemented lens achromatic bk9 glass optical lens Wholesale china manufacture cemented lens achromatic bk9 glass optical lens

大画像 :  Wholesale china manufacture cemented lens achromatic bk9 glass optical lens

商品の詳細:
起源の場所: 上海、中国
ブランド名: Advance
モデル番号: 003
お支払配送条件:
最小注文数量: 10部分
価格: $100.00/Pieces 10-99 Pieces
パッケージの詳細: Vacuum+EVA+Carton
供給の能力: 1ヶ月あたりの10000000の部分/部分
連絡先

Wholesale china manufacture cemented lens achromatic bk9 glass optical lens

説明
保証: - カスタマイズされたサポート: OEM、ODM
使用法: 光学 構造: Plano凸
形: 球形 材料: BK7および他の光学ガラス、水晶、サファイア、GE、Si、ZnSe、CaF2等
焦点距離: 習慣 コーティング: 要望に応じて
直径の許容: +/-0.005mm 表面の正確さ: N=1~0.5
Centerthicknessの許容: +/- 0.001mm 焦点距離の許容: +/-1%
表面質: 10/5~60/40 アプリケーション領域: イメージ投射、照明、レーザー等
サイズ: OEMのサイズ 港: 上海

Wholesale china manufacture cemented lens achromatic bk9 glass optical lens 0
Specification
Materials
BK7 or other optical glass,quartz,sapphire,Ge,Si,ZnSe,CaF2 etc
Diameter
1.5~300mm
Radius
R0.8mm-∞
Focal length
-30000mm~+30000mm
Center thickness tolerance
+/-0.01mm
Diameter tolerance
+/-0.005mm
Focal length tolerance
+/-1%
Surface accuracy
N=1~3
Irregularity
ΔN=0.1~0.5
Decenter
3''~1''
Surface quality
10/5~60/40
Coating
Upon request
Application area
Imaging,Lighting,Laser etc
Wholesale china manufacture cemented lens achromatic bk9 glass optical lens 2

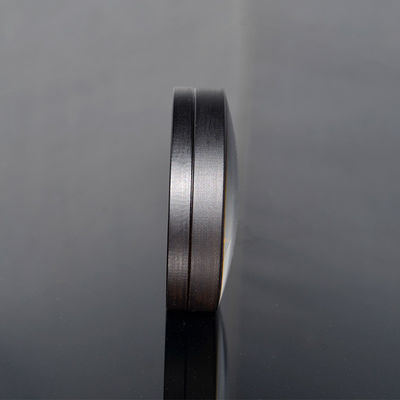

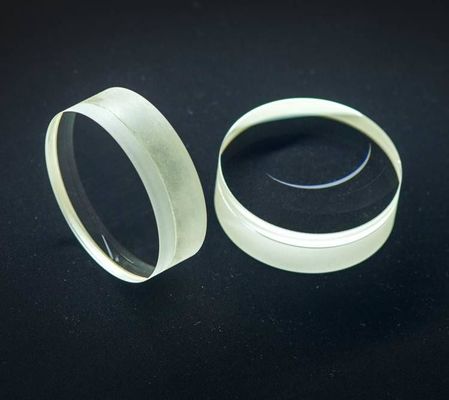

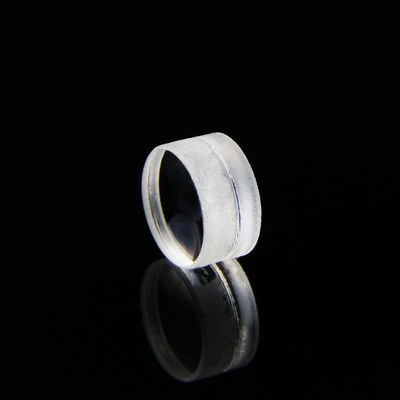

Cemented lens
The cemented lens is also called an achromatic lens, which is formed by cementing two single lens elements. The performance of multi-color (white light) imaging is much higher than that of a single lens. The achromatic lens consists of two lenses of different materials glued together to correct the dispersion of the glass. Eliminating the problem of chromatic aberration, achromatic lenses have been widely used in multi-color lighting and imaging, improving cost-effectiveness.
Wholesale china manufacture cemented lens achromatic bk9 glass optical lens 4
Wholesale china manufacture cemented lens achromatic bk9 glass optical lens 6
Wholesale china manufacture cemented lens achromatic bk9 glass optical lens 8
Wholesale china manufacture cemented lens achromatic bk9 glass optical lens 10
Recommend Products
Wholesale china manufacture cemented lens achromatic bk9 glass optical lens 12
Company Profile
Wholesale china manufacture cemented lens achromatic bk9 glass optical lens 14
Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise,officially established in September 2009,the plant site located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport. The company gathers several excellent technicans in optical industry, has comprehensive supporting capabilities such as optical mechanical and electrical design, processing and sales services, and wholeheartedly provides each customer with high-quality and convenient products and services. Business scope: optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service. Application fields: machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, scientific research institutions, etc. Company Advantages:
1. Have comprehensive design, production and sales capabilities, and provide customers with one-stop convenient procurement services; 2. It has tens of thousands of optical molds and samples, which can provide customers with fast proofing services with low cost; 3. Be able to participate in the customer's new product research and development early, provide feasible plans and suggestions, and make the project less detours;
Certifications
Wholesale china manufacture cemented lens achromatic bk9 glass optical lens 16
Exhibition
Wholesale china manufacture cemented lens achromatic bk9 glass optical lens 18
Packing & Delivery
Wholesale china manufacture cemented lens achromatic bk9 glass optical lens 20
Wholesale china manufacture cemented lens achromatic bk9 glass optical lens 22
FAQ
Q:What are your main products or Which fiefd do your products be used?
A:We are specialized in optical design.optical element processing,Lenses assembly,Such as Spherical lens,Aspherical
lens,Cylindarlens,Reflector mirror,Filter,Rod lens,Camera lenses etc,and our products are wide used to these filed such as
imaging,Laser,Lighting etc.

Q:What's your advantage?
1. We have about ten thousands optical modules and fixturesin stock,and employ several outstanding technicians and manager.that
will enable to provide customer excellent quality in shortleadtime,also can save the plenty of develop cost for customer.
2. We can help customer to optimize the optical system whichthey dislike,and provide the free optical solution or suggestion.

Q:What's your MOQ?
A:10pcs.
Q:What's your leadtime?
A:1day for inventory and 25~35days for the new project.

Q:What's your shipping type?
A:Usually by Fedex,DHL,TNT,EMS etc or Customer appointed.

Q:What's the payment condition?
A:T/T,L/C,VISA,Paypal,Alipay or Negotiation.

Q:What's your quality guarantee period?
A:Three years.
